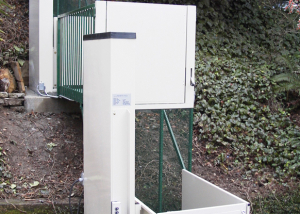

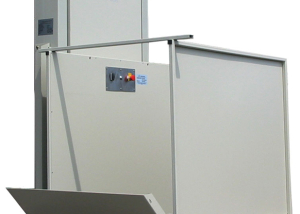

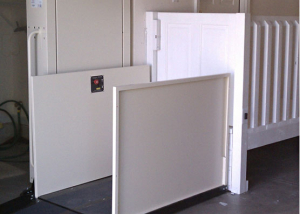

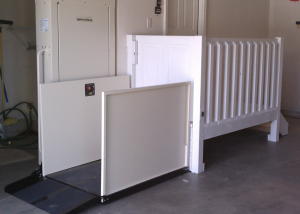

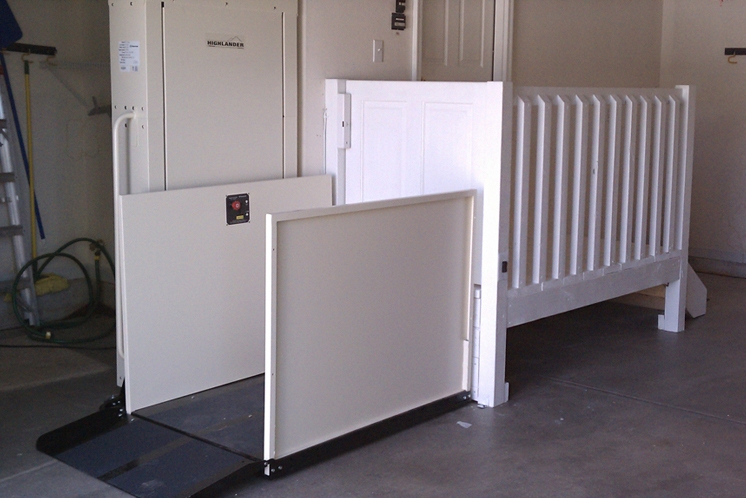

A vertical platform wheelchair lift, the Apex Green is a durable and versatile mobility solution for getting into or moving between floors of a home or commercial building. Installation is easy, and as tough outdoor conditions are no match, the Apex Green can be added in practically any location – indoors or outside.

Safety and ease of use go into every Apex Green model. The vertical wheelchair lift supports up to 750 pounds, and a skid-free surface improves stability. Safety sensors add a further layer of protection, halting the lift if an obstruction is detected.

For expanding mobility and independence inside a residential or commercial structure, the Apex Green travels a maximum of six feet. In your home or workplace, offer wheelchair users an economical alternative to extensive ramps and increase all-around accessibility with the Apex Green.


Additional Information

Standard Features

  • 8 fpm rated speed
  • Screw drive system
  • Standard platform of 34″ W by 54″ deep
  • 42″ high side guard panels
  • Travel capability of up to 6 feet
  • No pit required (3″ pit recommended to avoid need for ramp)
  • Emergency manual lowering
  • Anti-skid surface on platform floor
  • 16″ automatic access ramp
  • Safety under-panel sensor to detect object in downward path
  • Constant pressure up/down buttons
  • Emergency stop button
  • Easy installation
  • 115 VAC operation

Optional Features

  • Keyed call/send stations
  • Emergency alarm on car
  • Landing gates or landing doors
  • Public building package
  • 12 VDC battery operation

Colors and Finishes

The Apex Green comes standard with powder coated beige finish. Optional acrylic inserts or custom colors are availible.

Apex Green Drawings and Guides

  • Doors Opposite Sides Cab: PDF | DWG
  • Doors 90 Degree Left Cab: PDF | DWG
  • Doors 90 Degree Right Cab: PDF | DWG
